wedge welders

Name: wedge welders
Brand: Rayma
Price: 1 USD

Place of Origin : china

Brand Name : Rayma

Certification : ISO9001 CE

Model Number : Rayma-800

Voltage : 220V

Power : 800W （can tailor made 1100W and 1600W)

Frequency : 50Hz

Welding Area : 12.5mm*2,interior cavity 12mm

Weight : 4.8KGS

MOQ : one pcs

Packaging Details : carton

Delivery Time : one week

Payment Terms : T/T West Union

Supply Ability : 100pcs/week

Price : latest price

Contact Now

Details:

Wedge Welding uses a heated platen inserted between 2 or more thermoplastic materials to fuse or heat seal the plastics. Movement is translational. Heat sealing is caused by following the heated platen (or heated wedge) with a roller pressure means.

Application:

The welder can weld geo-membrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC,HDPE, EVA, PP.extensively used in engineering projects such as expressways, tunnels,reservoirs, waterproof of construction and so on

Product name	hot wedge welder
Model number	Rayma-800
Related Voltage	220V
Related Power	800W (can tailor made 1100W and 1600W)
Frequence	50Hz
Temperature	0-450 degree
Welding material thickness	0.2-2.0mm
Overlap width	100mm
Welding speed	0.8-6m/min
Welding width	12.5mm*2,interior cavity 12mm
Seam strength≧85% base material	(tensile resistant in shear direction)
Marking of conformity	CE
Net weight	4.8KGS

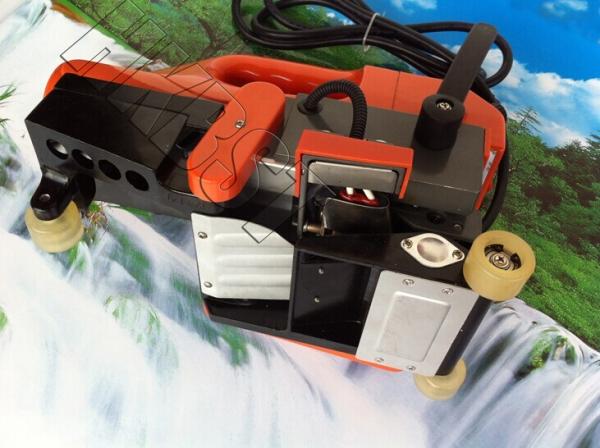

wedge welders Images
